SD‑1001‑ECO Series - Single Quarter Turn Weatherproof Electrical Actuators
SD‑1001‑ECO Series
The SD-1001-ECO Series from SDTORK Controls Pvt. Ltd. represents a compact, efficient, and reliable solution designed for light-duty industrial and commercial automation applications.
Built with a focus on performance, durability, and cost-effectiveness, these actuators are ideal for valve and damper actuation across a wide range of environments.
Engineered for smooth operation and minimal maintenance, the SD-1001-ECO Series ensures long-term reliability, making it a perfect choice where compact design and dependable functionality are essential.
Engineered for versatility, the SD-1001-ECO Series can be configured to suit multiple control requirements
On/Off Duty Applications: Available with a Local Control Station for convenient manual operation.
Modulating Duty Applications: Equipped with an integrated positioner card for precise proportional control and accurate valve positioning.
Technical Overview
Parameter
Type
Weatherproof Quarter-Turn Electric Actuator (Single Phase)
Body Material
Aluminium Alloy Die-Cast
Torque Range
From 30 Nm up to 2000 Nm
Motor Type
Reversible Induction Motor
Duty Modes
On-Off / Inching / Modulating
Mounting Standard
ISO 5211– Flange Sizes F05 / F07 / F10 / F12 (Depends upon Models)
Hand Lever
Detachable type for manual operation
Degree of Protection
IP55, IP65, IP66 & IP67 ratings available on request
Supply Voltag
Single Phase 230 VAC / 110 VAC ±10%, 50Hz / 60 Hz ±5%, 24 VDC (Alternate power supply available on request; consult SDTORK)
SD‑1001‑ECO Series - Single Quarter Turn Weatherproof Electrical Actuators Model:

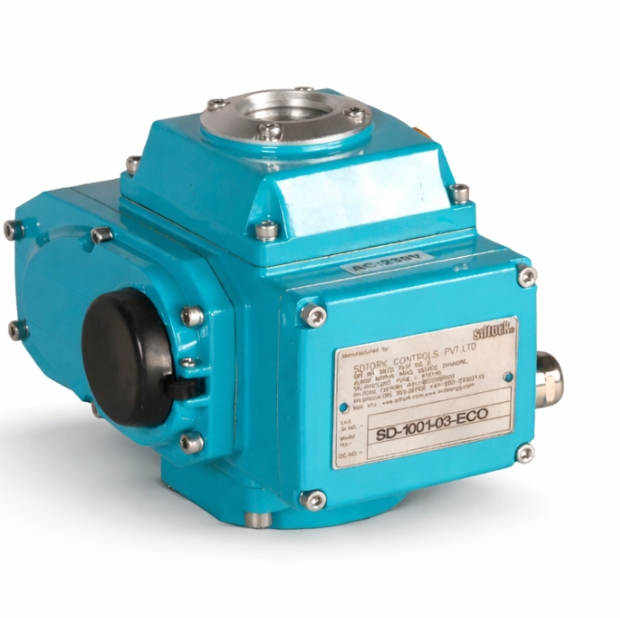

SD-1001- 03/05-ECO
- Industry Applications:Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque: 30 Nm, 50 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof

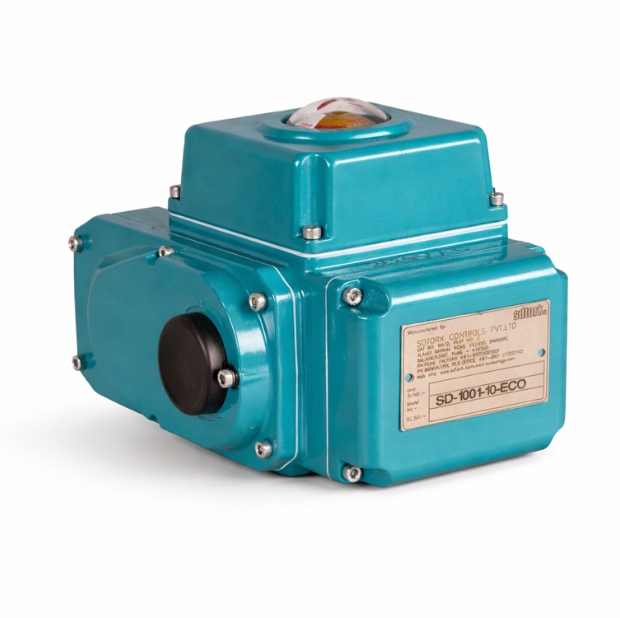

SD-1001-10-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque: 100 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 30 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof
SD-1001-20-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque:200 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof
SD-1001-30/40/60-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque: 300 Nm / 400 Nm / 600 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 45 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof

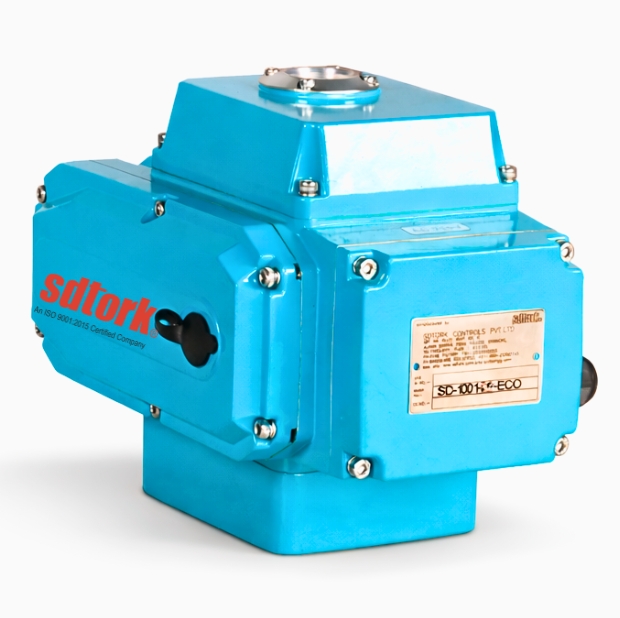

SD-1001-100-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque: 1000 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 45 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof

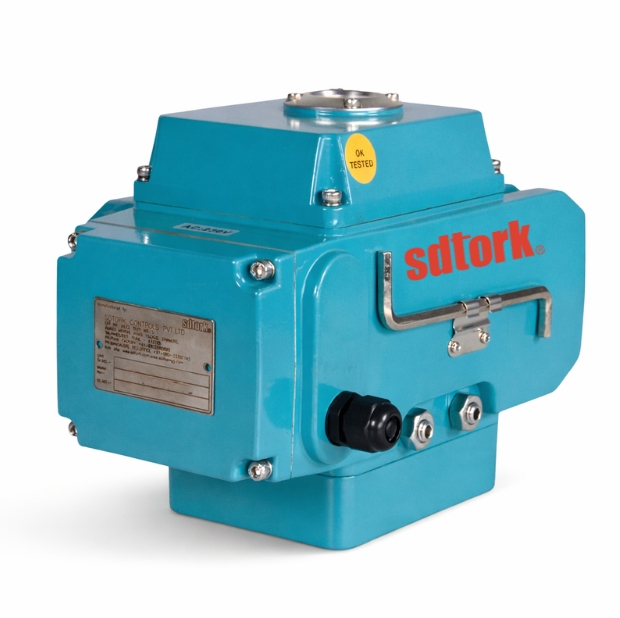

SD-1001-150/200-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque: 1500 Nm / 2000 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 60 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof
Industries Served:
Water & Wastewater
Pipelines, pumping stations, and treatment plants
Food & Beverage Processing
Hygienic and reliable flow control
HVAC Systems
Dampers and airflow regulation in factories and process plants
Paper & Pulp Industry
Process automation in manufacturing
Key Features
- Proven high-cycle performance for valves and dampers
- Cost-effective without compromising quality
- Easy installation, ideal for OEM and commercial applications
- Long-term, trouble-free operation in industrial and commercial environments
Why Choose ?
- High Reliability: Performs consistently in demanding industrial and commercial conditions
- Cost-Effective: Reduced downtime and maintenance costs
- Trusted Brand: Backed by SDTORK’s expertise in intelligent electrical actuators
- Global Presence: Used across 15+ countries in industrial and commercial projects
Applications
Ball Valves: Precise shut-off and flow control
Butterfly Valves: Efficient quarter-turn actuation
Dampers: Accurate airflow and process regulation
