SD-1001-20-ECO
SD-1001-20-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque:200 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof
- Duty Modes: On-Off / Inching / Modulating
- Motor Type: Single Phase Induction Motor with Thermal Protection
- Mounting Standard: ISO 5211 – Flange Sizes F05 / F07
- Weight: 4.5 kg
- Ambient Temperature Range: 0°C to 45°C
- Supply Voltage: Single Phase 230 VAC ±10%, 50 Hz ±5%
The SD-1001-20-ECO from SDTORK Controls Pvt. Ltd. is a robust, compact, and cost-effective quarter-turn actuator, designed for reliable on/off valve and damper control in industrial and commercial applications.
With high torque, durability, and minimal maintenance, the ECO series delivers a cost-effective solution without compromising on performance or quality.
Ideal for HVAC systems, process automation, and industrial operations, the SD-1001-20-ECO is easy to install, maintenance-free, and engineered to provide years of trouble-free operation in demanding environments.
- Feedback Potentiometer: High-resolution, continuous type (100–235 Ω) for precise position feedback

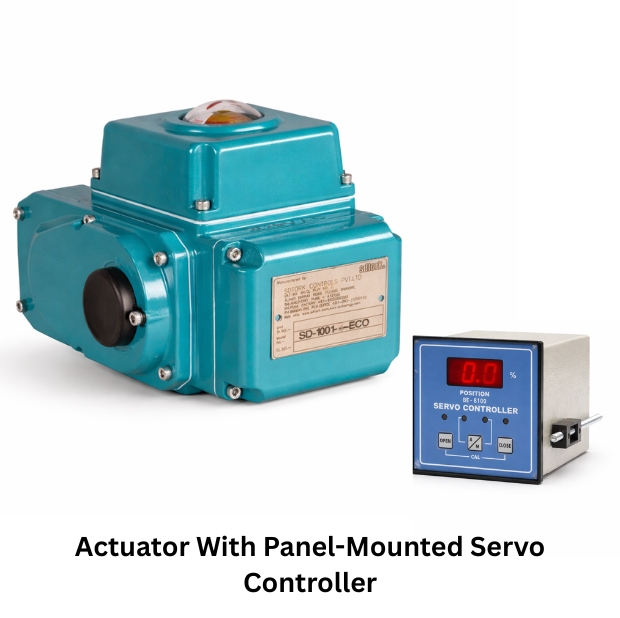

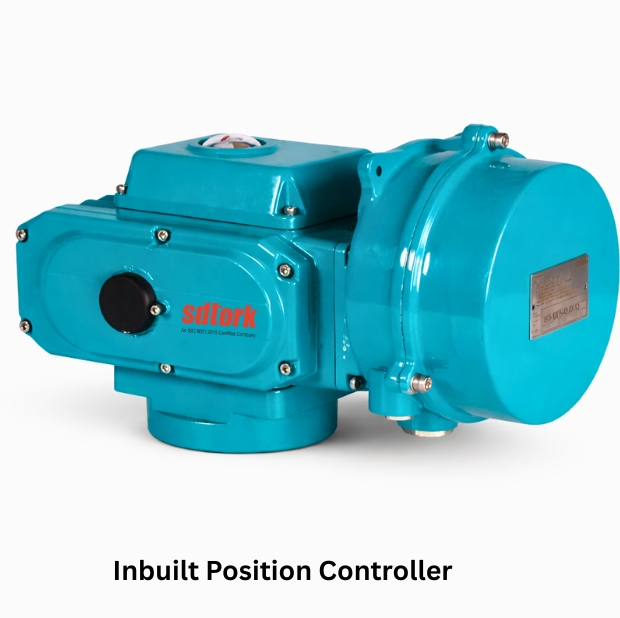

- Position Controller Unit (PCU): Field/panel mounted, input: 4–20 mA / 0–10 V DC for remote monitoring and control
- Position Transmitter: Actuator-mounted, outputs 4–20 mA proportional signal
- Remote Position Indicator: Panel-mounted digital indicator showing 0–100% valve/damper position
- Space Heater: Prevents condensation inside the actuator; connectable to 230 V AC/DC
- Water & Wastewater: Pipelines, pumping stations, and treatment plants
- Food & Beverage Processing: Hygienic valve and damper automation
- HVAC Systems: Heating, ventilation, and air conditioning control
- Power Generation: Gas line valves, turbines, and renewable energy systems
- Paper & Pulp Industry: Process automation for demanding operations
- Airports: HVAC, dampers, and air circulation control
- Shopping Malls: Climate control, ventilation, and fire safety systems
- Hotels & Resorts: Efficient temperature regulation and air handling systems
