FSD-1001 Series – Single / Three Phase Quarter-Turn Flameproof Stayput Electrical Actuators
FSD-1001 Series
The FSD-1001 Series from SDTORK Controls Pvt. Ltd. is a flameproof, high-performance quarter-turn electric actuator designed for precise, reliable valve and damper automation in hazardous and explosive environments.
Engineered to comply with IEC 60079-0:2011, IEC 60079-1:2014, and IEC 60529:2013, the FSD-1001 Series ensures superior explosion protection by containing any internal ignition and preventing flame propagation into the surrounding atmosphere.
Built from high-grade aluminium alloy, the actuator’s robust construction withstands the high internal pressure of explosions without structural damage, ensuring operator safety and operational reliability.
Designed for industrial applications where flammable gases, vapors, or dust are present, the FSD-1001 Series provides dependable performance, mechanical strength, and operational endurance even in the harshest field conditions.
Technical Overview
Parameter
Type
Flameproof (Ex d) Stayput Quarter-Turn Electric Actuator (Single / Three Phase)
Body Material
Aluminium Alloy – strong, corrosion-resistant, and explosion-proof
Torque Output
300 Nm – 600 Nm
Motor Type
Squirrel Cage Induction Motor – fully enclosed, high-torque, low-inertia design with thermal protection
Duty Modes
On-Off / Inching / Modulating
Manual Operation
Non-rotating wheel type with worm reduction and self-locking function
Degree of Protection
IP65 / IP67 / IP68 (optional)
Mounting Standard
ISO 5211 – F07 / F10 / F12
Operating Angle
0°–90° (adjustable ±5°)
Ambient Temperature
–20 °C to +70 °C
Single Phase
– 110 VAC / 230 VAC ±10%, 50 / 60 Hz
Three Phase
– 380 VAC / 415 VAC ±10%, 50 / 60 Hz
Paint
Standard RAL 5021 + Black (other colors on request)

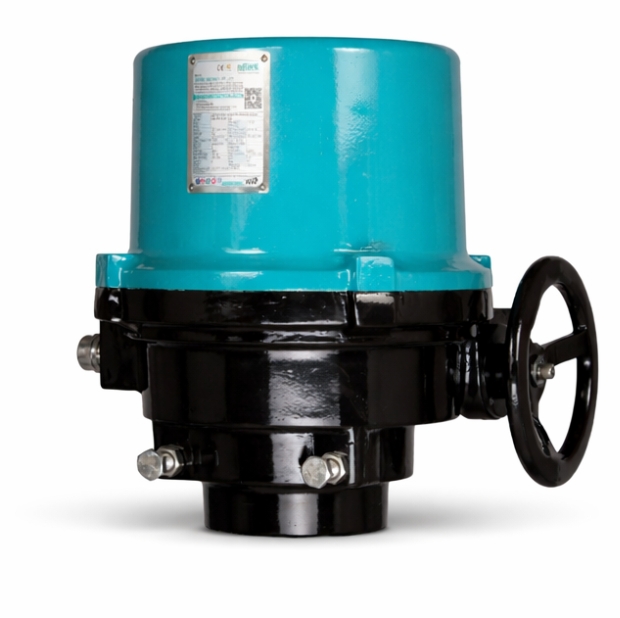

FSD-1001 Series – Single / Three Phase Quarter-Turn Flameproof Stayput Electrical Actuators Model:
FSD-1001-20 / 40 / 50
- Industry Use: Oil & Gas, Chemical, Marine, Power, Water & Wastewater, HVAC, Steel, Cement
- Rated Torque: 200 Nm / 400 Nm / 500 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 / 40 / 80 sec per 90° rotation
- Protection Class: IP65 / IP67 (Flameproof Ex d IIB T4)

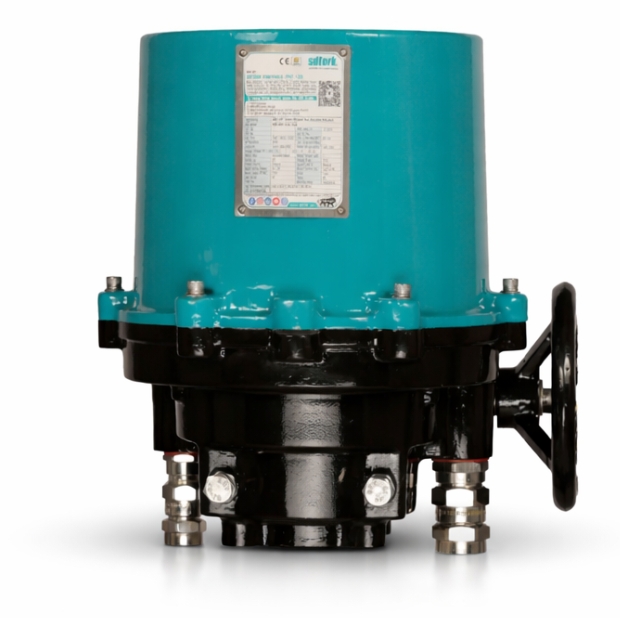

FSD-1001-12.5 / 25
- Industry Use: Oil & Gas, Chemical, Marine, Power, Water & Wastewater, HVAC, Steel, Cement
- Rated Torque: 125 Nm / 250 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 / 40 sec per 90° rotation
- Protection Class: IP65 / IP67 (optional IP68) Flameproof Ex d IIB T4
Industries Served:
Oil & Gas
Refineries, pipeline control, offshore/onshore terminals
Petrochemical
Flammable chemical process zones
Power Generation
Fuel handling, combustion, and control systems
Paint & Coating
Explosion-prone mixing and curing areas
Pharmaceutical
Controlled hazardous environments
Key Features
- Fully enclosed, maintenance-free squirrel-cage motor
- Self-locking gear train prevents back-drive and ensures stability
- Integrated thermal switch safeguards motor from overload
- Spur + worm gear mechanism for smooth torque transfer with minimal noise
- Cam-operated travel limit switches for precise position control
- Optional LED indicators for full OPEN / CLOSE position
- Manual override operation available under de-energized conditions
- Factory-filled with long-life synthetic grease – no additional lubrication required
- Suitable for installation in any mounting direction
Why Choose ?
- Complies with IEC explosion protection standards
- Designed for hazardous and heavy-duty environments
- Compact, efficient, and safe operation
- Proven reliability in critical automation systems
- Supported by SDTORK’s global expertise and after-sales service
Applications
Ball Valves
Butterfly Valves
Plug Valves
Dampers
