FSD-1001-Ex Series – Flameproof Quarter-Turn Electrical Actuators (Single / Three Phase)
FSD-1001-Ex Series – Flameproof Quarter-Turn Electrical Actuators (Single / Three Phase)
The FSD-1001-Ex Series from SDTORK Controls Pvt. Ltd. represents the next generation of flameproof, weatherproof quarter-turn actuators engineered for valve and damper automation in hazardous, explosive, and marine environments.
Built to deliver precision, safety, and long-term reliability, the FSD-1001-Ex actuators are designed for areas where flammable gases, vapors, or dust are present — such as offshore oil platforms, refineries, ships, chemical plants, and coastal installations.
Manufactured from marine-grade aluminium alloy and certified to IEC 60079-0 / IEC 60079-1 / IEC 60529, the actuator housing is capable of containing internal explosions without deformation and prevents flame propagation into the surrounding atmosphere.
With torque outputs from 30 Nm to 600 Nm, the series offers rugged mechanical design, thermal safety protection, and efficient gear operation, making it ideal for critical flow control in marine, process, and energy applications.
Technical Overview
Parameter
Type
Flameproof (Ex d) Stayput Quarter-Turn Electric Actuator (Single / Three Phase)
Body Material
Marine-grade Aluminium Alloy Die-Cast – Corrosion-resistant and lightweight
Torque Range
30 Nm to 600 Nm
Motor Type
Squirrel-Cage Induction Motor – Fully enclosed, high-torque, thermally protected
Duty Modes
On-Off / Inching / Modulating
Manual Operation
Handwheel / Key-type / Wrench with clutch-based manual override
Degree of Protection
IP65 / IP67 / IP68 (optional) – Weatherproof & Dustproof
Mounting Standard
ISO 5211 – Flange F05 / F07 / F10 (depending on model)
Operating Angle
0°–90° (Adjustable ±5°)
Ambient Temperature
–20 °C to +70 °C
Supply Voltage
230VAC / 110VAC ±10%, 50Hz ±5%, 380VAC / 415VAC ±10%, 50Hz ±5%
Insulation Class
Class F
Paint Finish
RAL 5021

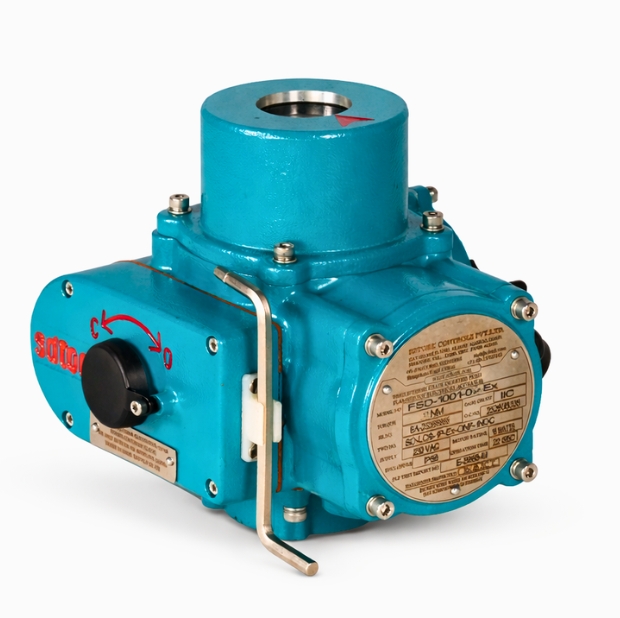

FSD-1001-Ex Series – Flameproof Quarter-Turn Electrical Actuators (Single / Three Phase) Model:
FSD-1001-03 / 05-Ex
- Industry Use: Oil & Gas, Marine, Chemical, Water, HVAC, and General Process Industries
- Rated Torque: 30 Nm / 50 Nm
- Operating Time: 23 seconds per 90° rotation
- Protection Class: IP65 / IP67 (optional IP68)
- Motor Type: Induction Motor with Thermal Protection

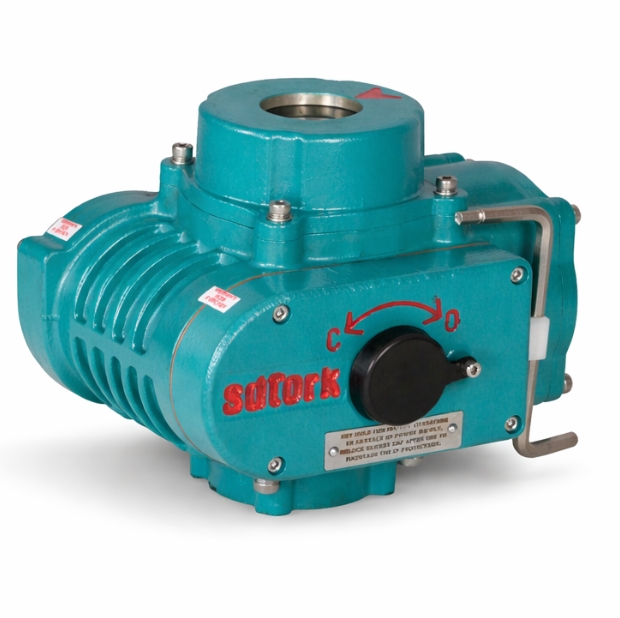

FSD-1001-10 / 20-Ex
- Industry Use: Oil & Gas, Marine, Chemical, Water, HVAC, and General Process Industries
- Rated Torque: 100 Nm / 200 Nm
- Operating Time: 30 seconds per 90° rotation
- Protection: IP65 / IP67 (optional IP68)
- Motor Type: Induction Motor with Thermal Protection

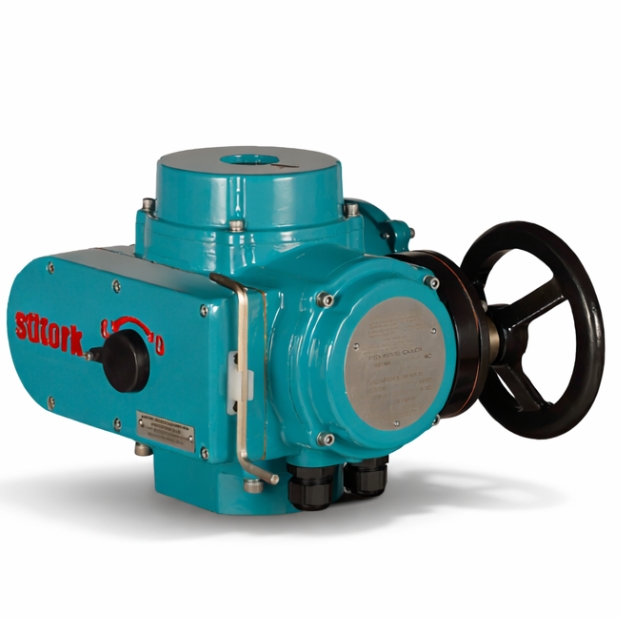

FSD-1001-40 / 60-Ex
- Industry Use: Oil & Gas, Marine, Chemical, Water, HVAC, and General Process Industries
- Rated Torque: 400 Nm / 600 Nm
- Operating Time: 30 seconds per 90° rotation
- Protection: IP65 / IP67 (optional IP68)
- Motor Type: Induction Motor with Thermal Protection

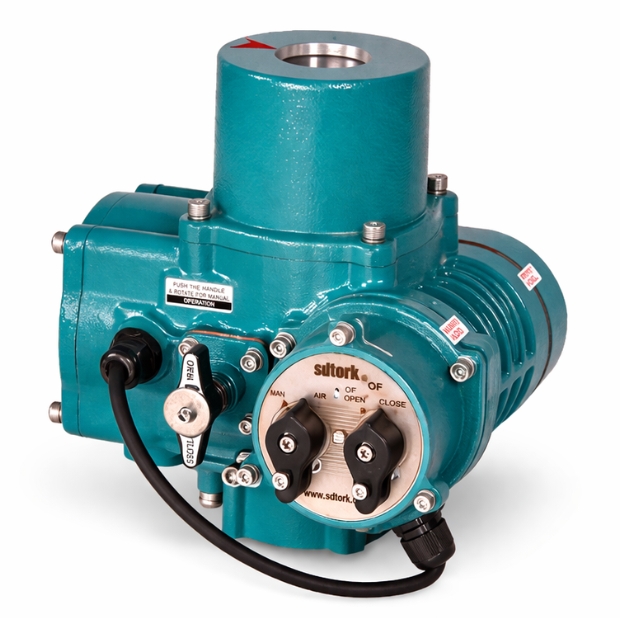

FSD-1001-03 / 05-Ex with Local Control Station
- Industry Use: Oil & Gas, Marine, Chemical, Water, HVAC, and General Process Industries
- Rated Torque: 30 Nm / 50 Nm
- Operating Time: 23 sec per 90° rotation
- Protection Class:IP65 / IP67 (optional IP68)
- Motor Type:Induction Motor with Thermal Protection

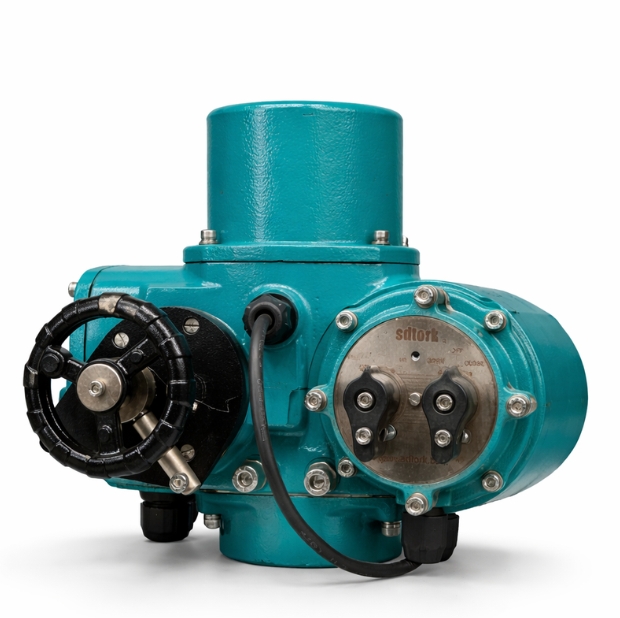

FSD-1001- 10 / 20-Ex with Local Control Station
- Industry Use: Water, Marine, Energy, Chemical, HVAC, and General Process Industries
- Rated Torque: 100 Nm / 200 Nm
- Operating Time: 30 sec per 90° rotation
- Protection Class: IP65 / IP67 (optional IP68)
- Motor Type: Induction Motor with Thermal Protection

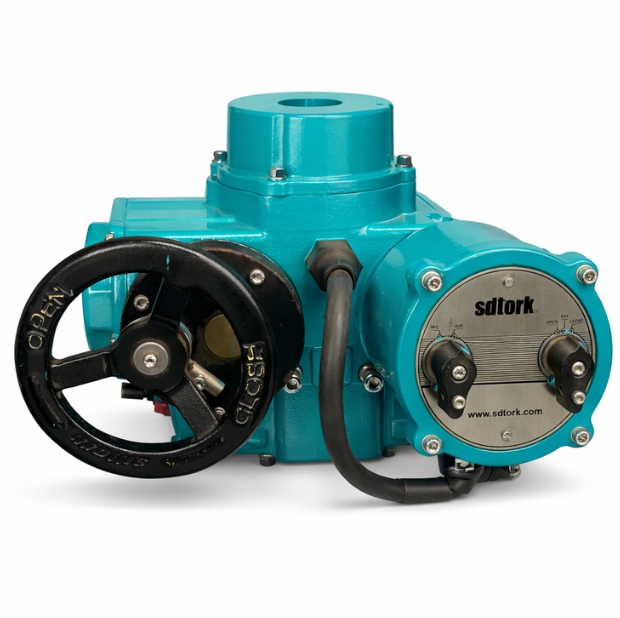

FSD-1001-40 / 60-Ex with Local Control Station
- Industry Use: Water, Marine, Energy, Chemical, HVAC, and General Process Industries
- Rated Torque: 400 Nm / 600 Nm
- Operating Time: 30 sec per 90° rotation
- Protection Class: IP65 / IP67 (optional IP68)
- Motor Type: Induction Motor with Thermal Protection
Industries Served:
Offshore Oil & Gas Platforms
Ship Engine Rooms & Ballast Control Systems
Marine Ventilation & Fuel Handling Automation
Coastal Water Treatment & Desalination Plants
Refineries, Terminals & Chemical Processing Units
Paint & Coating Facilities (Explosion-prone zones)
Key Features
- High-strength Flameproof Aluminium Enclosure for hazardous & marine zones
- Worm + Spur Gear Combination for smooth torque transmission
- Self-locking Design ensures valve position retention during power loss
- Self-locking Design ensures valve position retention during power loss
- Thermal Overload Protection prevents motor overheating
- Cam-Operated Limit Switches for accurate travel control
- Torque Limit Protection to safeguard valve and actuator components
- Visual Position Indicator for 0–100 % open/close status
- Factory-lubricated for Life – zero maintenance requirement
- Flexible Mounting Orientation for installation convenience
Why Choose ?
- Designed for hazardous and marine automation applications
- IEC & ATEX-compliant flameproof construction
- High-efficiency gear system ensures quiet and precise operation
- Backed by SDTORK’s global engineering & after-sales support
- Long-life lubrication and sealed enclosure for minimal maintenance
- Proudly engineered and manufactured in India, trusted worldwide
Applications
Ball Valves
Butterfly Valves
Plug Valves
Dampers
