SD-3001 Series
SD-3001 Series
The SDTORK SD-3001 Series Multi-Turn Weatherproof Electrical Actuators are advanced, high-performance units engineered for precise and reliable automation of multi-turn industrial valves. Designed for demanding process environments, these actuators deliver consistent torque, accurate positioning, and dependable operation in both open-loop and closed-loop control systems.
Built using a modular “Building Block Principle”, the SD-3001 Series offers flexibility in configuration, allowing easy adaptation to different valve types, torque requirements, and control applications. This approach ensures simplified maintenance, faster serviceability, and long operational life.
Powered by a reversible induction motor, the actuator provides smooth multi-turn motion with high mechanical efficiency. Its rugged construction, combined with advanced switching and signaling mechanisms, ensures safe, reliable, and precise valve operation even under heavy-duty industrial conditions.
The SD-3001 Series is specifically designed for critical multi-turn applications, making it an ideal solution for industries where accuracy, durability, and operational safety are essential.
Technical Overview
Parameter
Industry Use
Water, Marine, Energy, Chemical, Power, HVAC, Nuclear, and General Process Industries
Rated Torque
30 Nm to 120 Nm
Operating Angle
Multi-Turn Operation
Operating Time
Variable depending on gear ratio and valve travel
Protection Class
IP65 / IP66 (Optional IP67 / IP68) – Weatherproof & Dustproof
Duty Modes
On-Off / Inching / Modulating
Motor Type
Three Phase Reversible Induction Motor (TEFC / TESC)
Mounting Standard
ISO 5210 / ISO 5211
Weight
Approx. 18 – 28 kg
Ambient Temperature
–20°C to +70°C
Supply Voltage
3 Phase 380V / 415V ±10%, 50Hz ±5%
Handwheel
Manual Override with Auto-Declutch Mechanism
Paint
Standard RAL 5021
Torque Switch
Available (Bi-directional Torque & Travel Limit Switches)
SD-3001 Series Model:
SD-3001-03 / 06 / 08
- Industry Use: Water, Marine, Energy, Chemical, Power, HVAC, and General Process Industries
- Rated Torque: 30 Nm / 06 Nm / 08 Nm
- Operating Angle: Multi-Turn Operation
- Operating Time: Variable depending on gear ratio and valve travel
- Protection Class: IP65 (Optional IP67 / IP68) – Weatherproof & Dustproof

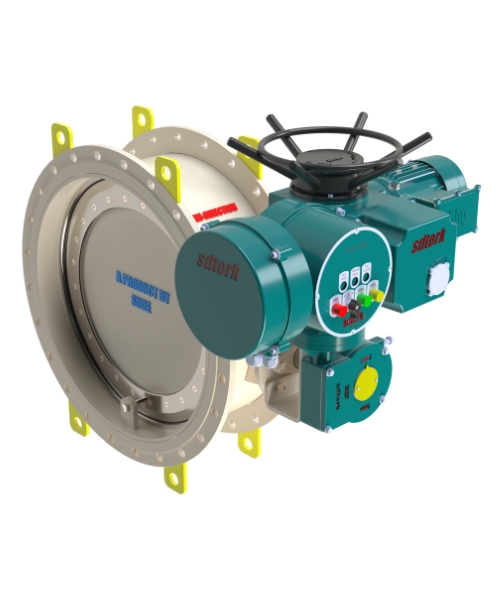

SD-3001-12
- Industry Use: Water, Marine, Energy, Chemical, Power, HVAC, and General Process Industries
- Rated Torque: 120 Nm
- Operating Angle: Multi-Turn Operation
- Operating Time: Variable depending on gear ratio and valve travel
- Protection Class: IP65 (Optional IP67 / IP68) – Weatherproof & Dustproof
Industries Served:
Power Generation
Water & Wastewater Treatment
Chemical & Process Industries
Chemical & Process Industries
Cement Industry
HVAC Systems
Oil & Gas
Nuclear Facilities
Key Features
- Heavy-duty design for continuous industrial operation
- High torque accuracy across full stroke
- Modular construction for easy maintenance
- Up to high start frequency, suitable for modulating duty
- Self-locking gear mechanism ensures position holding
- Auto-declutch manual override for safe emergency operation
- Compact & robust housing for harsh environments
- Flexible control options (On-Off / Modulating)
- Compatible with PLC / DCS systems
Why Choose ?
- Proven performance in critical applications
- Wide configuration flexibility
- Long service life with low maintenance
- Reliable operation in extreme environments
- Strong technical support from SDTORK
Applications
Gate Valves
Globe Valves
Sluice Valves
Knife Gate Valves
