SD-1001-10-ECO
SD-1001-10-ECO
- Industry Applications: Water & Wastewater, Food & Beverage, HVAC, Power Generation, Paper Industries
- Rated Torque: 100 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 30 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof
- Duty Modes: On-Off / Inching / Modulating
- Motor Type: Single Phase Induction Motor with Thermal Protection
- Mounting Standard: ISO 5211 – Flange Sizes F05 / F07
- Weight: 4.5 kg
- Ambient Temperature Range: 0°C to 45°C
- Supply Voltage: Single Phase 230 VAC ±10%, 50 Hz ±5%
The SD-1001-10-ECO from SDTORK Controls Pvt. Ltd. is a compact, robust, and cost-effective quarter-turn actuator, designed for reliable on/off valve and damper control in industrial and commercial applications.
With high torque, durability, and low maintenance, the ECO series delivers an economical solution without compromising on performance or quality.
Ideal for HVAC systems, process automation, and industrial operations, the SD-1001-10-ECO is easy to install, maintenance-free, and engineered to provide years of trouble-free operation in demanding environments.
- Feedback Potentiometer: High-resolution, continuous type (100–235 Ω) for precise position feedback

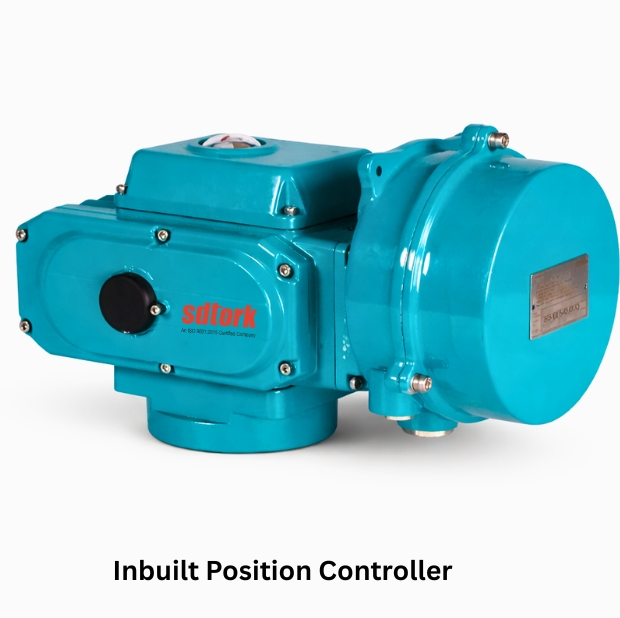

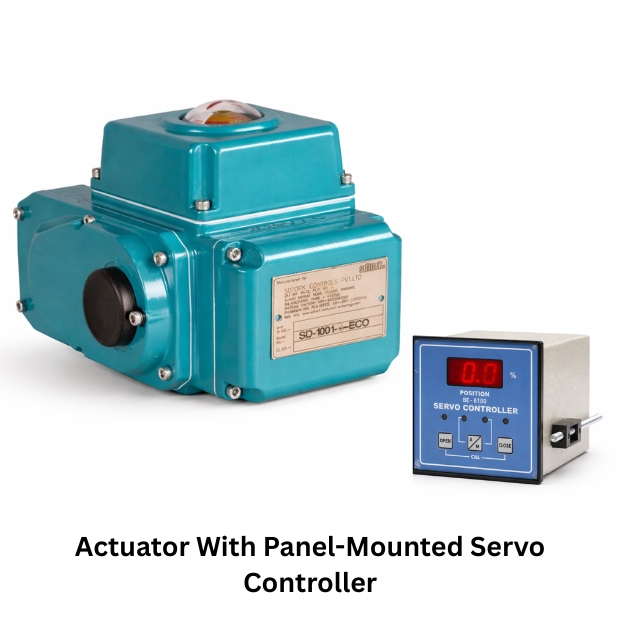

- Position Controller Unit (PCU): Field/panel mounted, input: 4–20 mA / 0–10 V DC for remote monitoring and control
- Position Transmitter: Actuator-mounted, outputs 4–20 mA proportional signal
- Remote Position Indicator: Panel-mounted digital indicator showing 0–100% valve/damper position
- Space Heater: Prevents condensation inside the actuator; connectable to 230 V AC/DC
- Water & Wastewater: Pipelines, pumping stations, and treatment plants
- Food & Beverage Processing: Hygienic valve and damper automation
- HVAC Systems: Heating, ventilation, and air conditioning control
- Power Generation: Gas line valves, turbines, and renewable energy systems
- Paper & Pulp Industry: Process automation for demanding operations
- Airports: HVAC, dampers, and air circulation control
- Shopping Malls: Climate control, ventilation, and fire safety systems
- Hotels & Resorts: Efficient temperature regulation and air handling systems
