The SD-1001 Series Electrical Actuators from SDTORK Controls Pvt. Ltd. are designed for precise, reliable valve and damper automation in demanding industrial environments. Built for quarter-turn applications such as ball valves, butterfly valves, plug valves, and dampers, they deliver smooth operation, consistent torque, and long service life.
Featuring a high-efficiency spur and planetary gear system, the actuator ensures optimal torque transmission, while the worm reduction mechanism provides manual override with a self-locking function for position stability during power failure.
The weatherproof SD-1001-WP variant offers excellent protection against dust, moisture, and harsh conditions, making it suitable for both indoor and outdoor applications. Its compact, rugged, and low-maintenance design makes it an ideal solution for modern industrial automation.
Technical Overview
Parameter
Type
Weatherproof Stayput Quarter-Turn Electric Actuator (Single / Three Phase)
Body Material
Aluminium Alloy
Torque Output
60 Nm / 125 Nm / 250 Nm
Motor Type
Induction Motor
Duty Modes
On-Off / Inching / Modulating
Manual Operation
Non-rotating handwheel with worm reduction mechanism
Protection Class
IP65 / IP66 / IP67 (optional variants available)
Mounting Standard
ISO 5211, F07 & F10
Supply Voltage
Three Phase: AC 380V / 415V ±10% Single Phase: AC 110V / 230V ±10%
Frequency
50Hz / 60Hz ±5%
Paint
Standard RAL 5021 & Black
SD-1001 Series . Model:

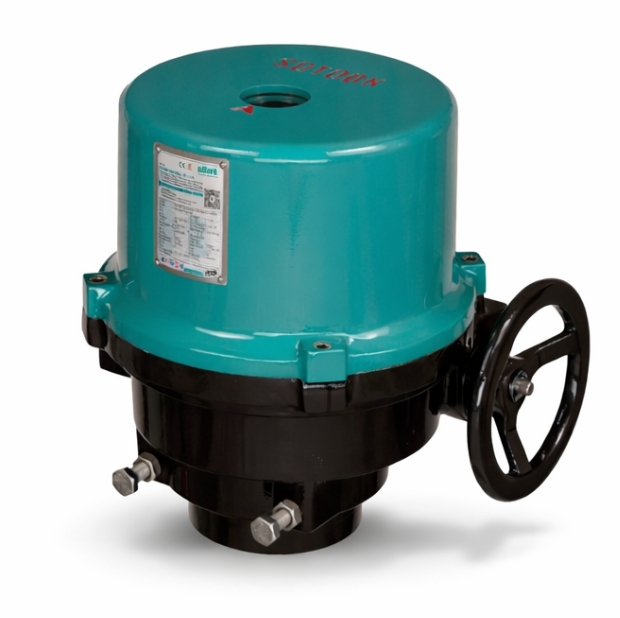

SD-1001-06 / 12.5 / 25 – Quarter-Turn Electrical Actuator
- Industry Use: Power Generation, Process Industry, Oil & Gas, HVAC
- Rated Torque: 60 Nm / 125 Nm / 250 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 / 40 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof

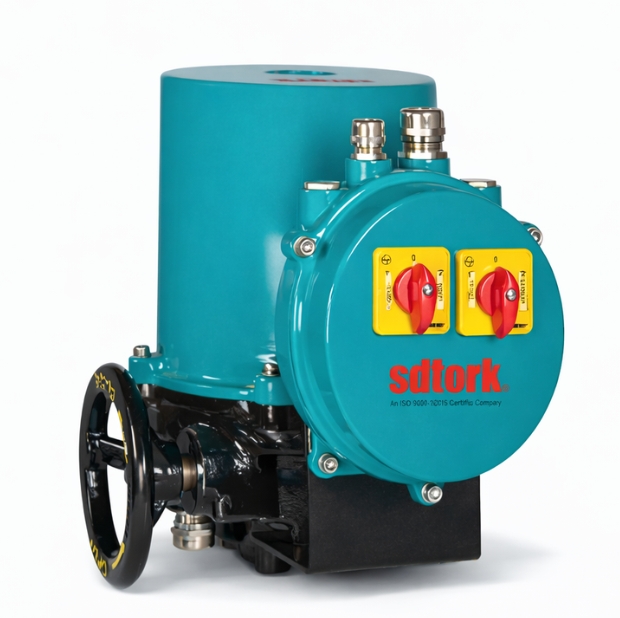

SD-1001-06 / 12.5 / 25 Actuator with Local Control Station (LCS)
- Industry Use: Power Generation, Process Industry, Oil & Gas, HVAC
- Rated Torque: 60 Nm / 125 Nm / 250 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20/ 40 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof

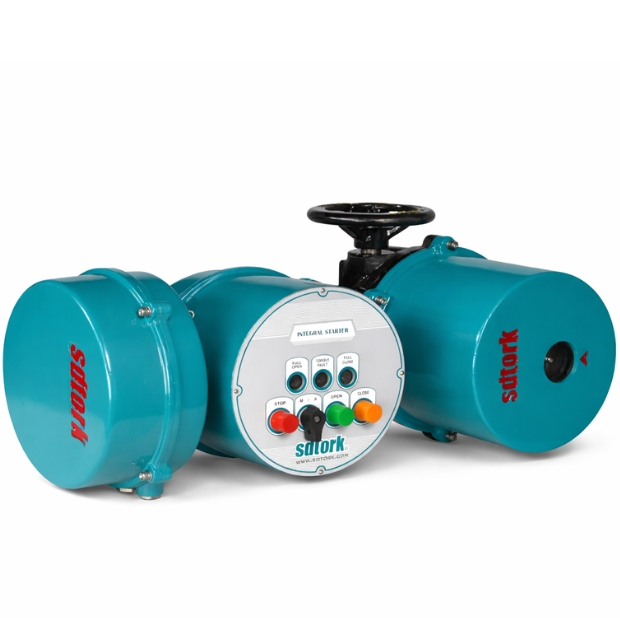

SD-1001-06 / 12.5 / 25 Series Three Phase Electrical Actuator with Starter
- Industry Use: Power Generation, Process Industry, Oil & Gas, HVAC
- Rated Torque: 60 Nm / 125 Nm / 250 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 / 40 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof

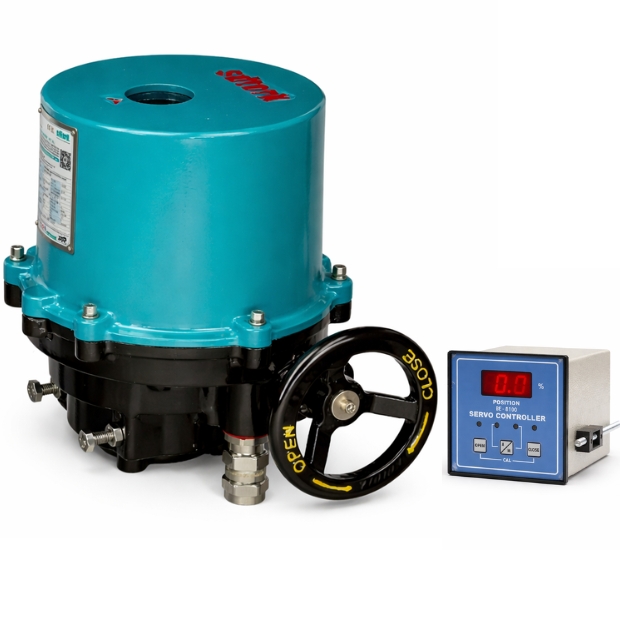

SD-1001-06 / 12.5 / 25 Actuator with Panel Mounted Servo Controller
- Industry Use: Power Generation, Process Industry, Oil & Gas, HVAC
- Rated Torque: 60 Nm / 125 Nm / 250 Nm
- Operating Angle: 90° (Quarter-Turn)
- Operating Time: 20 / 40 sec per 90° rotation
- Protection Class: IP65 / IP67 – Weatherproof & Dustproof
Industries Served:
Key Features
- High-efficiency gear system for smooth and reliable torque transmission
- Self-locking mechanism ensures position stability without power
- Over-torque protection safeguards actuator and valve components
- Compact & rugged design for long-lasting performance
- Low maintenance “fit & forget” operation
- Suitable for continuous and heavy-duty industrial applications
Why Choose ?
- Proven performance in harsh industrial conditions
- Designed with advanced safety and protection features
- Easy installation with ISO standard mounting interface
- Flexible operation: On-Off / Inching / Modulating control
